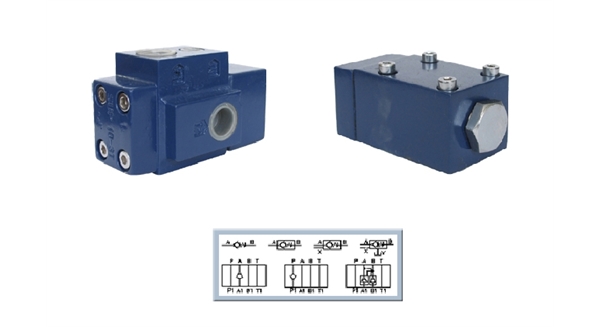

Supape de sens
Date tehnice:
- Deschidere nominale: DN 6, DN 10, DN 20, DN 25, DN 32;
- Presiune maxima 315 bari;
- Debit pana la 800 l/min;
- Variante: Simple sau deblocabile, cu comanda directa sau pilotata;
- Montaj: de traseu, pe placa, modular, tip cartus;
- Montajul de placa conform ISO 4401, ISO 5781
Supape de sens Dn 6 [PDF]
Supape de sens deblocabile modulare Dn 10, 16, 20 [PDF]
Supape de sens unic deblocabile Dn 10, 20, 32 [PDF]
Supape de sens unic 6 .. 32 [PDF]
Supape de sens unic 10, 32 [PDF]
Supape de sens unic Dn 10, 20, 32 [PDF]
Supape de sens unic miniaturizate Dn 6 [PDF]
Supapae de sens unic modulare Dn 10 [PDF]
